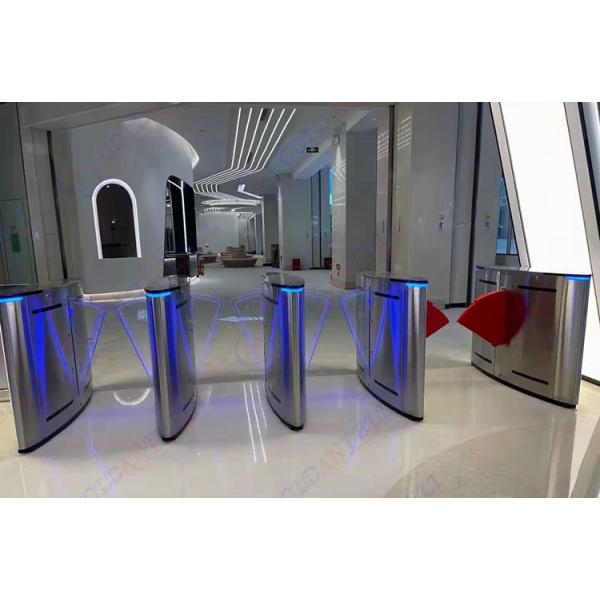

Office Access Control Turnstiles 60cm Passage Width Flap Barrier Turnstile

Product Categories
SHENZHEN GOLDANTELL TECHNOLOGY CO.,LIMITED
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

Office Access Control Turnstiles 60cm Passage Width Flap Barrier Turnstile

Opening ways : rfid, barcode,fingerprint, or more access

Type : Speed electrical Flap gate

IP : IP 54

Opening speed : within 1s

Size Of product : 120 x 30 x 100(H) cm

Application : Indoor or outdoor

Operating temperature : -15°C--75°C

Material : 304 stainless steel

Power supply : 110-240v, 50/60HZ

Size : 120 x 30 x 100(H) cm

Direction : bi-directional (or optional single way)

Passage width : 60cm

Brand Name : Goldantell

Model Number : GAT-232

Certification : CE/ROHS/FCC/SGS/IS9001

Place of Origin : Guangdong,China

MOQ : 1pc

Price : negotiation

Payment Terms : T/T,western Union,LC,Paypal

Supply Ability : 2,000pcs per month

Delivery Time : 7-9 working days after received your payment

Packaging Details : Packed in carton firstly,and then reinforced with export crate or wooden case for outer packing

Contact Now

Office Access Control Turnstiles 60cm Passage Width Flap Barrier Turnstile
Product Overview

Face recognition and temperature office access control wing turnstile flap barrier turnstile gate designed for secure access management.

Integration Capabilities: Our turnstile can combine with various access readers including RFID Reader, Fingerprint Reader, Coin Machine, QR code/Bar code System, and ESD Tester Access Control. If you have an existing access control system, you can purchase our turnstiles separately. If not, we can install the complete access control system for you. Remote control operation is also supported.

Technical Specifications
Parameter Specification
Power AC220C±10V, 50HZ
Operating Temperature -15°C to 75°C
Relative Humidity ≤95%, No Condensation
Arm Length 51cm
Passing Speed 30-40 persons/min (IC Card)
Motor 0.5NM/24V (Fully Automatic)
Input Connection +12V Level Signal or Pulse Wide>100ms DC12V
Communication Connection RS485 Communication Module Standard
Material SUS304, thickness ≥ 1.3mm
Protection Grade IP54
Color SSB(US32D) - Stainless Steel Brushed / Powder Coating (Optional)
Key Features
  • Smart card reader compatible with various cards including IC and ID cards
  • Expandable to automatic identification systems for access control, pedestrian flow control, attendance check, or fare collection
  • Equipped with international standard electrical interface for easy integration with other R/W devices
  • Remote supervision computer control and management capabilities
  • Infrared photocell system for unauthorized entry detection and tailgating prevention
  • Anti-strike function to protect pedestrians
  • LED gate direction indicator showing operational status (green arrow for entry free, red cross for passage locked)
  • Dual input signal operation (from access controller, button, or other equipment)
  • Audible sound prompt and information display function
  • Automatic flap opening during power interruption with N/C mode recovery after power restoration (optional)
Application Areas

Subway Stations, Hoverports, Tourism Sports, Exhibitions, Swimming Halls, Residence Areas, Enterprise Entrance and Exit Attendance, Gateway Guard, Charge Management, and Special Access Control applications.

Available in Single Lane, Two Lanes, or multiple lane configurations as required.

Office Access Control Turnstiles 60cm Passage Width Flap Barrier Turnstile
Recommended Alternatives

1. Double Wings Flap Type: Supports wider passageways up to 900mm

2. High Speed Sliding Type: Provides high security with FULL height glass wall (half height wall barrier optional)
